Product Description
• Material : alloy steel, grade 8, quenched and tempered
• Safety factor : MBL equals 4 x WLL
• Finish : painted red
• Certification :: 2.1 2.2 MPI b CE

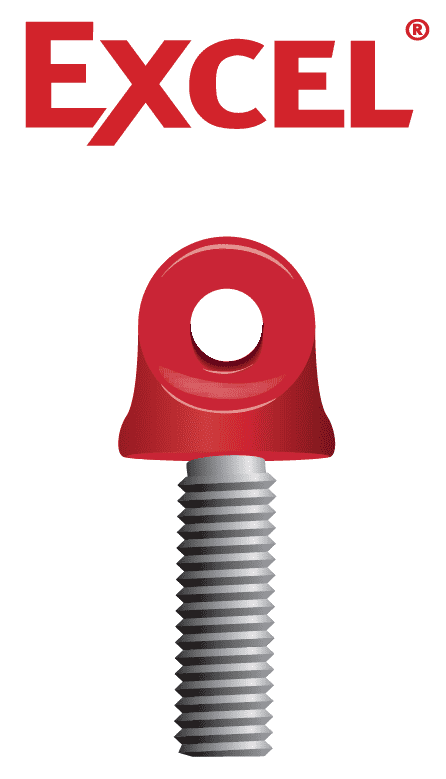

OL Green Pin® Small Lifting Eye GR8
$16.65 – $59.81
Additional information
| Weight | N/A |
|---|---|
| Working Load Limit (WLL) | 0.5 t, 0.9 t, 1.25 t, 1.5 t, 1.9 t, 2.25 t, 3.12 t, 3.8 t, 5 t, 6.25 t, 8 t, 9 t, 10 t, 12.5 t, 15 t |

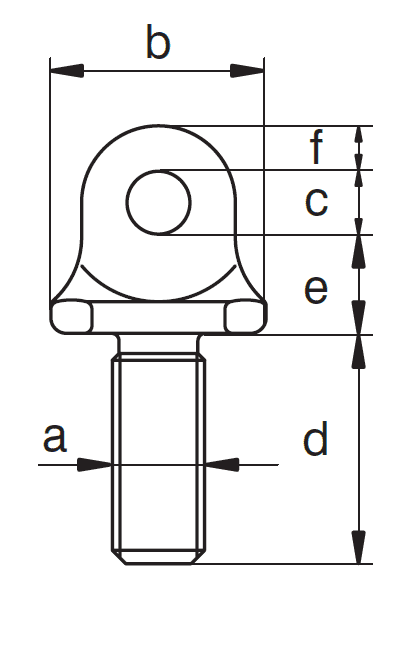

| diameter thread (a) | M8 x 1.25 mm, M10 x 1.50 mm, M12 x 1.75 mm, M14 x 2.00 mm, M16 x 2.00 mm, M18 x 2.50 mm, M20 x 2.50 mm, M22 x 2.50 mm, M24 x 3.00 mm, M27 x 3.00 mm, M30 x 3.50 mm, M33 x 3.50 mm, M36 x 4.00 mm, M39 x 4.00 mm, M42 x 4.50 mm |
Specifications
(Choose size to show)
