Product Description
• Material : bow and pin high tensile steel, Grade 6, quenched and tempered
• Safety Factor : MBL equals 6 x WLL
• Standard : EN 13889 and
meets performance requirements of US Fed. Spec. RR-C-271, Grade A
• Finish : hot dipped galvanized
• Certification :: 2.1 2.2 3.1 MTC a CE
• Note : key for unscrewing the pin must be ordered separately
Description

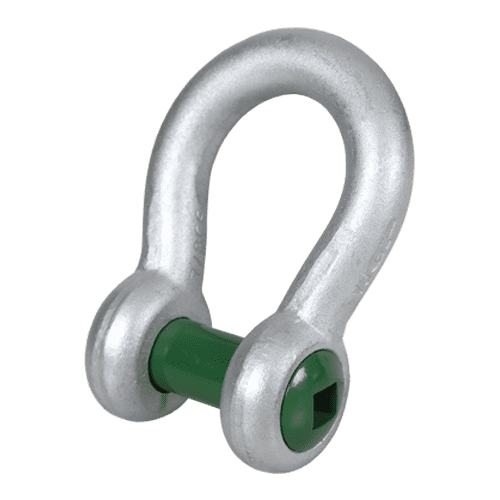

The Green Pin® Fishing Bow Shackle FP is a bow shackle with a square sunken hole screw pin (flush pin). The Green Pin® Fishing Bow Shackle FP contains no protruding parts so it does not damage or get caught in fishing nets. Another important feature is that the chamber in the shackle eye hides the screw thread and reduces wear of rope. Galvanization of the bow shackle ensures its long-term durability. The Green Pin® Fishing Bow Shackle FP is suitable for both one-leg and multi-leg systems and can be assembled with the help of the Green Pin® Sunken Hole Key. The shackle is available in a range with a working load limit from 2 up to 17 ton.
