Product Description
• Material : alloy steel, grade 8, quenched and tempered
• Safety factor : MBL equals 5 x WLL
• Finish : painted red
• Certification :: 2.1 2.2 3.1 MPI b CE
ALDIN Green Pin® Lifting Eye Length as DIN580 GR8
$4.80 – $239.44
Additional information
| Weight | N/A |
|---|---|
| Working Load Limit (WLL) | 0.2 t, 0.4 t, 0.7 t, 1 t, 1.2 t, 1.5 t, 2 t, 2.5 t, 3 t, 4 t, 5 t, 6 t, 7 t, 8 t, 9 t, 10 t, 15 t, 18 t, 20 t, 25 t, 30 t, 36 t |
| diameter thread (a) | M6 x 1.00 mm, M8 x 1.25 mm, M10 x 1.50 mm, M12 x 1.75 mm, M14 x 2.00 mm, M16 x 2.00 mm, M18 x 2.50 mm, M20 x 2.50 mm, M22 x 2.50 mm, M24 x 3.00 mm, M27 x 3.00 mm, M30 x 3.50 mm, M33 x 3.50 mm, M36 x 4.00 mm, M39 x 4.00 mm, M42 x 4.50 mm, M45 x 4.50 mm, M48 x 5.00 mm, M52 x 5.00 mm, M56 x 5.50 mm, M60 x 5.50 mm, M64 x 6.00 mm |

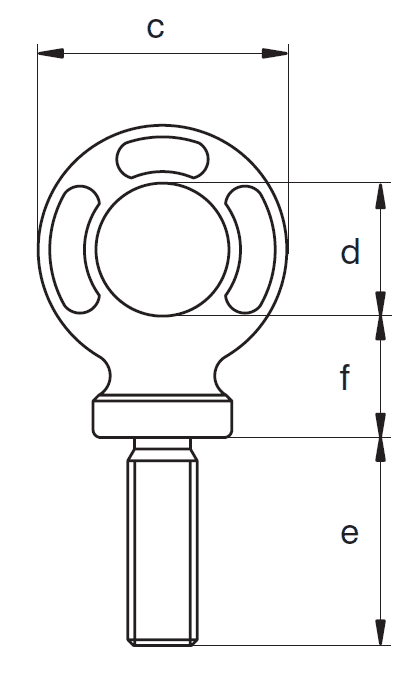

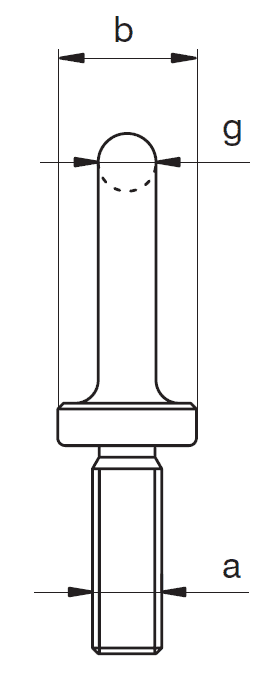

Specifications
(Choose size to show)
