$16.53 – $198.23
• Material : alloy steel, grade 8, quenched and tempered
• Safety factor : MBL equals 5 x WLL
• Finish : painted red
• Temperature Range : up to +250°C
• Certification :: 2.1 2.2 3.1 MPI b CE
• Note : WLL indicated hereunder are given in the worst conditions of use, i.e. 90°
| Weight | N/A |
|---|---|
| Working Load Limit (WLL) | 0.4 t, 0.7 t, 1 t, 1.6 t, 2.5 t, 4 t, 5 t, 6.3 t, 10 t, 12.5 t |

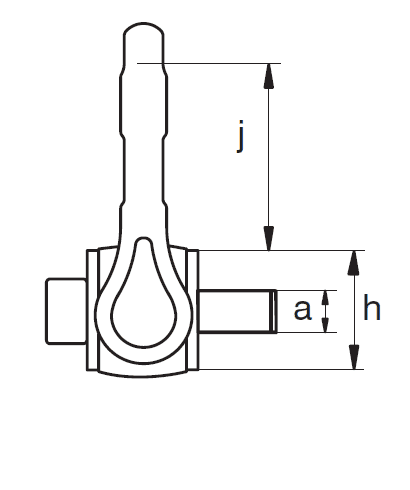

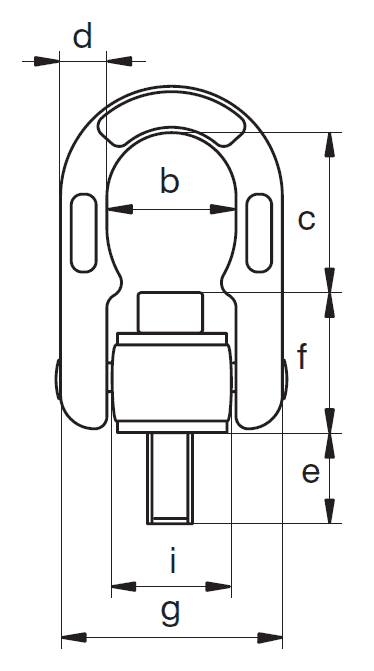

| diameter thread (a) / length (e) | M10 x 1.50 mm / 125 mm, M10 x 1.50 mm / 62 mm, M12 x 1.75 mm / 125 mm, M12 x 1.75 mm / 62 mm, M16 x 2.00 mm / 172 mm, M16 x 2.00 mm / 92 mm, M20 x 2.50 mm / 112 mm, M20 x 2.50 mm / 172 mm, M24 x 3.00 mm / 112 mm, M24 x 3.00 mm / 172 mm, M27 x 3.00 mm / 90 mm, M30 x 3.50 mm / 240 mm, M30 x 3.50 mm / 90 mm, M36 x 4.00 mm / 110 mm, M42 x 4.50 mm / 120 mm, M8 x 1.25 mm / 52 mm, M8 x 1.25 mm / 92 mm |
